MBBR /FAB MEDIA - P.P.VIRGIN MATERIAL

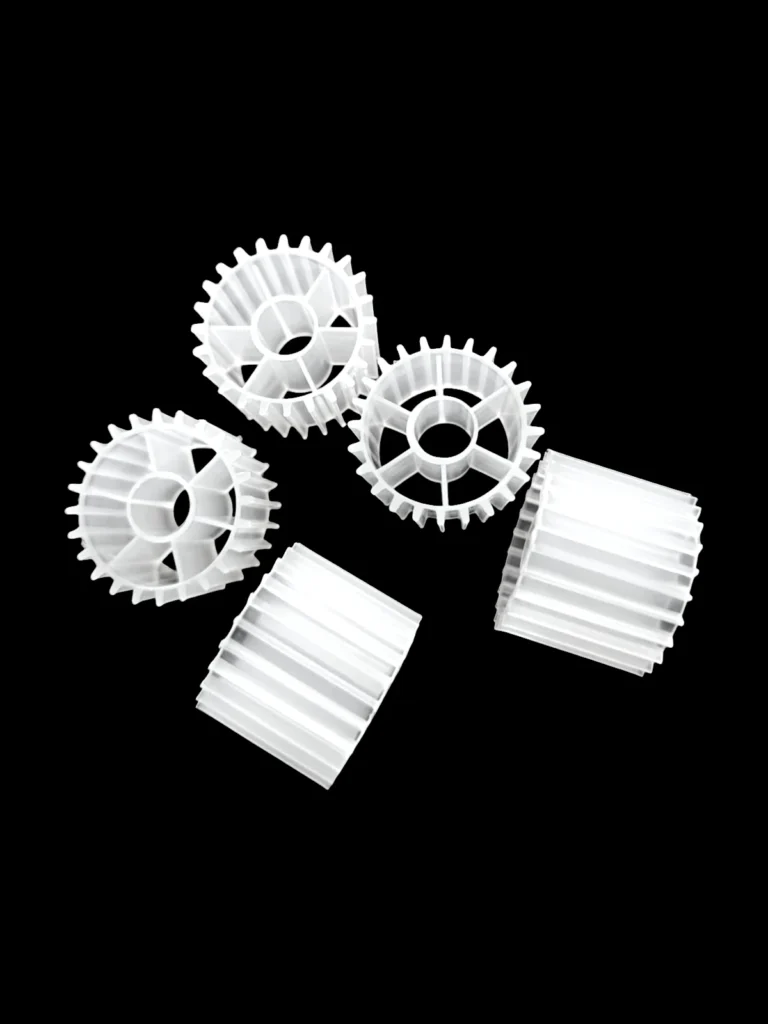

MBBR (Moving Bed Biofilm Reactor) / FAB Media made from P.P. Virgin Material is a high-quality and advanced biological treatment solution designed for efficient wastewater management systems. Manufactured using 100% virgin polypropylene, this media ensures superior strength, durability, and long-lasting performance compared to recycled materials.
The media is engineered with a unique structure that provides a large protected surface area, allowing maximum growth of beneficial microorganisms. These microorganisms form a biofilm that effectively breaks down organic pollutants such as BOD and COD, resulting in improved water quality and enhanced treatment efficiency.
Its free-floating design enables continuous movement within the aeration tank, ensuring uniform mixing, better oxygen transfer, and maximum contact between wastewater and biomass. This dynamic action not only boosts biological activity but also prevents clogging and reduces maintenance requirements.
Being made from virgin PP material, the media offers excellent chemical resistance, corrosion resistance, and thermal stability. It can withstand harsh industrial conditions, including exposure to chemicals and fluctuating temperatures, without losing its structural integrity or efficiency. MBBR / FAB Media – P.P. Virgin Material is widely used in Sewage Treatment Plants (STP), Effluent Treatment Plants (ETP), industrial wastewater treatment systems, aquaculture, and water recycling applications. It is suitable for both new installations and upgrading existing treatment systems to increase capacity and efficiency. Key features include high surface area, superior biofilm support, lightweight design, resistance to clogging, long service life, and minimal maintenance. Its robust and reliable performance makes it a cost-effective and sustainable solution for modern wastewater treatment needs.
a
Product Specifiction
| Parameter | Specifications | |||
|---|---|---|---|---|
| Type of Media | Fluidized Bio Media | |||
| MOC of Media | PP UV Stabilized | |||
| Structure | Cylindrical with External Fins | |||
| Colour | White-Natural | |||
| Effective Specific Surface Area | 400 M2/M3 | |||
| Total Surface Area | 450 - 475 M2 | |||
| PSA/TSA Ratio (%) | 75% | |||
| Media Height | 16 MM (14 to 16 mm) | |||
| Media Diameter | 22 MM (21 to 22 mm) | |||
| No. of Pcs Per Kg | 750 +/- 10 Pcs | |||
| Specific Gravity | 0.90 – 0.95 gms/cm3 | |||
| Voidage | 98% | |||
| Max Continuous Operating Temp | 100°C |
